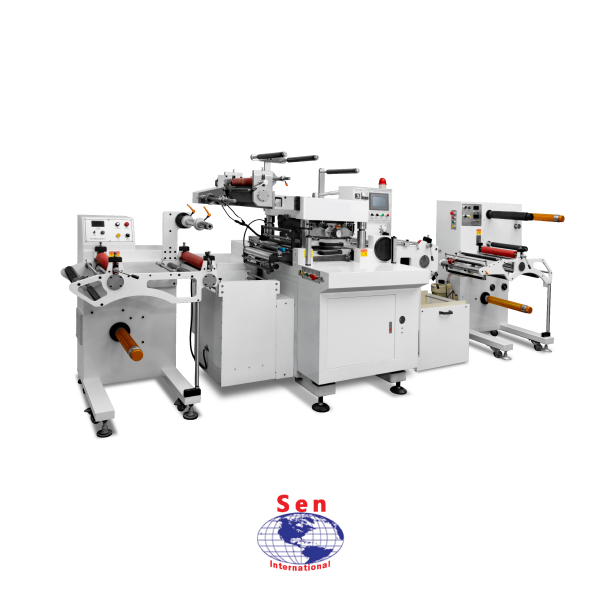

New Sen CH-320D Single Station High Die Cutting Machine
New Sen CH-320D Single Station High Die Cutting Machine
Model
Sen CH-320D
Description
| Model : | Sen CH-320D (Single Head) |
| Max. Web Width : | 330mm |
| Max. Paper Length : | 360mm |
| Machine Speed : | > 25,000 times/hour |
| Applicable Blade Height : | 7mm - 23mm |
| Die Cutting Precision : | ± 0.05mm |
| Cushion Thickness : | 0.5mm - 3mm |
| Application Material : | Roll Web : < 350mm> |
| Max. Unwinding Diameter : | 600mm |
| Max. Winding Diameter : | 600mm |
| Max. Die Cutting Size : 3 | 60*315 |
| Voiltage / Current : | 380V/320A (3 Phase) |
| Gross Power : | 10KW |
| Machine Size : | 2300*1400*1650 |
| Machine Weight : | ≈ 2,300Kg |
| Country of Origin : | Assembly in China |
