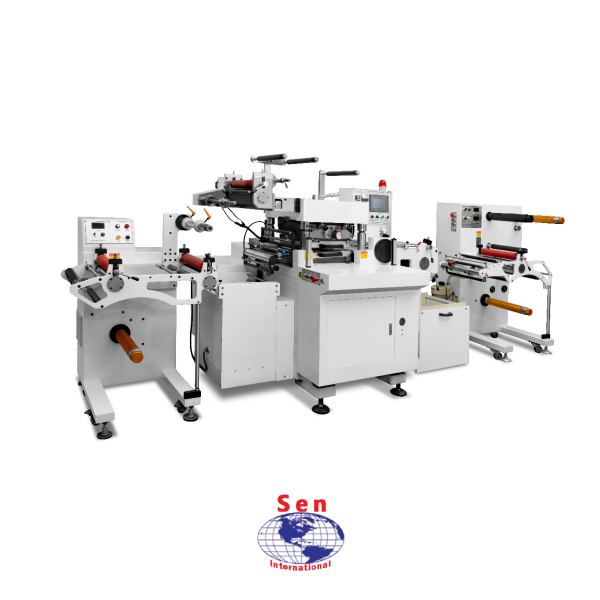

New Sen CH-360D Single Station High Speed Die Cutting Machine
New Sen CH-360D Single Station High Speed Die Cutting Machine
Model
Sen CH-360D
Description
| Model : | Sen CH-360D |
| Max. Web Width : | 360mm |
| Max. Paper Length : | 400mm |
| Max. Die Cutting Size : | 350mm x 400mm |
| Max. Unwinding Diameter : | 600mm |
| Max. Winding Diameter : | 600mm |
| Machine Speed : | > 25,000 times/hour |
| Applicable Blade Height : | 7mm - 23mm |
| Die Cutting Precision : | ± 0.05mm |
| Cushion Thickness : | 0.5mm - 3mm |
| Application Material : | Roll Web : < 350mm> |
| Voiltage / Current : | 380V/320A (3 Phase) |
| Gross Power : | 10KW |
| Machine Size : | (L)2400mm x (W)1400mm x (H)1650mm |
| Machine Weight : | ≈ 2,300Kg |
