AMSKY OS & LETTER PRESS CTP
AMSKY OS & LETTER PRESS CTP

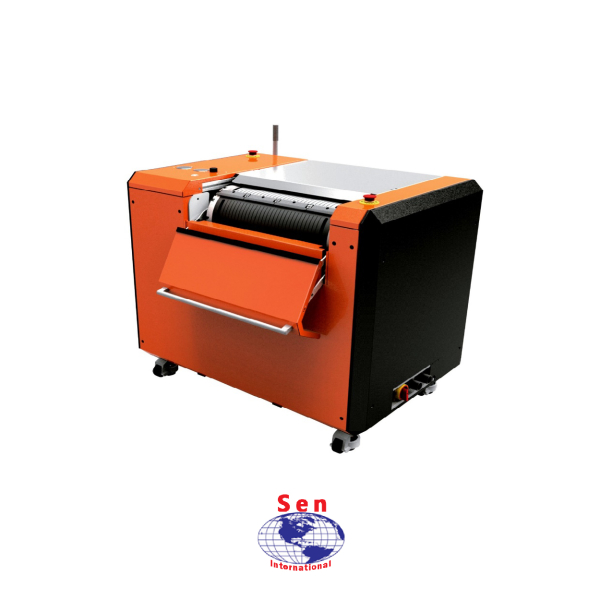

Model
Aura-800E
Description
| Laser Channel: | 16CH |
| Output Speed: | 1.25 m2 / H |
| Max. Breadth: | 30" X 25" / 762MM X 635MM |
| Plate Thickness: | 0.7mm ~1.7mm |
| Laser Power: | High power semiconductor laser diode |
| Plate Type: | Letter Press |
| Application: | Label & Trademark |
| Resolutions: | 4000dpi |
| Plate Loading: | Manual load & unload |
| Interface: | USB 2.0 |
| Focus Adjust: | Dynamic autofocus |
| Device Size: | 1087 x 770 x 1000mm (WxDxH) |
| Net Weight: | 400KG |
| Power: | 220V/50Hz, 60Hz, 1.5KW + 1.1KW | 220V/50Hz,60Hz, Mainframe 1.5KW + Vacuum 1.1KW |
| Environment: | Recommended Temperature: 18 - 30°C, Humidity: 10%-80% |
| Laser Head: | Made In USA |
| Country Of Origin: | China |
Features
Drum Auto Balance :
Auto balance system of drums take no more than 5 seconds to adjust the drum balance block to a position, making the drum stable in high speed rotation.
Auto Switch Of Laser Channel :
When any channel breaks down, laser channel auto switch system can continue outputting through the longest consecutive channel that remains working to ensure non-stop production.
Linear Motor :
More accurate, more simple, and more reliable
