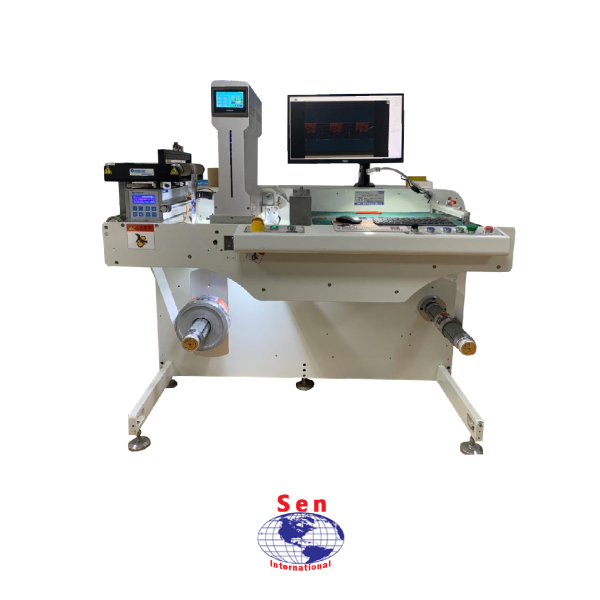

New Sen Digital Inspection Machine
New Sen Digital Inspection Machine
Model
Sen-LR350
Description
| Model: | Sen LR-350 |
| Mfg Year: | 2020 |
| Max. Web Width: | 350mm |
| Max. Inspection Area: | 350mm x 320mm |
| Min. Inspection Area: | 50mm x 20mm |
| Max. Sensitivity: | 0.03mm⊃2; |
| Min. Sensitivity: | 0.1mm⊃2; |
| Min. Registration Precision Checking: | ±0.1mm |
| Max. Inspection Speed: | 80m/min |
| Unwinder & Rewinder Diameter: | 600mm |
| Machine Size: | (L) 1500mm x (W) 1100 x (H) 1280mm |
| Machine Weight: | 800kgs |
| Power Required: | 3 Phase 380V 50/60HZ, 8KW |
| Display: | 4K Resolution Camera: (Dalsa, Canada) |
| Inspection Items: | Dirty points, colour difference, leak impression, scratches, misregistration,one -dimentional code, QR code, OCR, variable data. |
| Country Of Origin: | Made in China |
| Come with: | 1 Unit Automatic Voltage Stabilizer (AVR) ~ Input 380V / Output 380V / 10KW |
