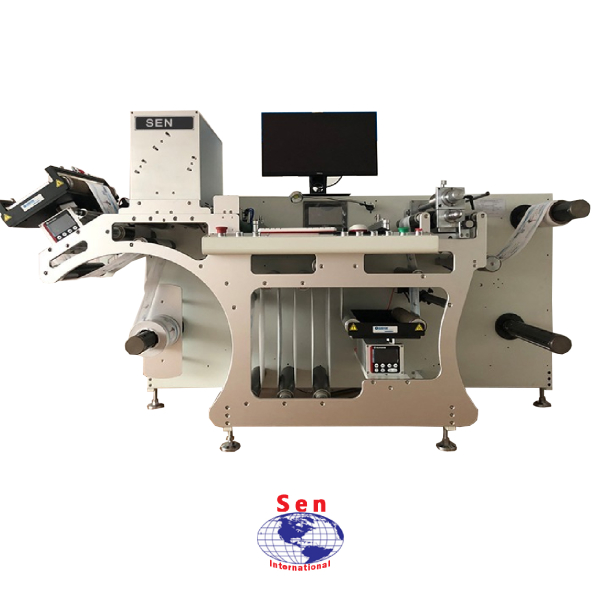

New Sen LRS-350 100% QC INSPECTION MACHINE
New Sen LRS-350 100% QC INSPECTION MACHINE
Model
Sen-LRS350
Description
*With Slitting, Servo Drive Motor Control System 2.3KW (Brand: Wei Chuang, China)
& PLC (Brand: Fatek, Taiwan)
| Model: | Sen LRS-350 [Latest Model] |
| Max. Paper Width: | 350mm |
| Max. Inspection Area: | 320mm x 300mm |
| Min. Inspection Area: | 50mm x 30mm |
| Min. Reg. Precision Checking: | ±0.1mm |
| Max. Inspection Speed: | 120 meter / minute ( depending on Sticker sizes and contents ) |
| Machine Size: | (L)2150mm x (W)1100mm x (H)1280mm |
| Machine Weight: | 1,500kgs |
| Power Required: | Three Phase 380V 50/60HZ 8KW |
| Display: | 4K Resolution Camera: (Dalsa, Canada) |
| Display Monitor: | 23 Inch |
| Counter: | 1 Pc. |
| Slitting Blade: | 10 Pcs. |
| Inspection Items: | Defect detection paste, missing printing, dirty spot, overprint deviation, color difference, stamping defects, Etc. |
| Barcode detection one dimensional code EN8 / EN13 / EN39 / EN128, QR code, character detection does not contain transmutable code. | |
| Country Of Origin: | Made in China |
