Label printing machines
Three Sen presses for self-adhesive labels, each built to order and commissioned by our technicians. All three print intermittently; only the FX-450 also prints full rotary.

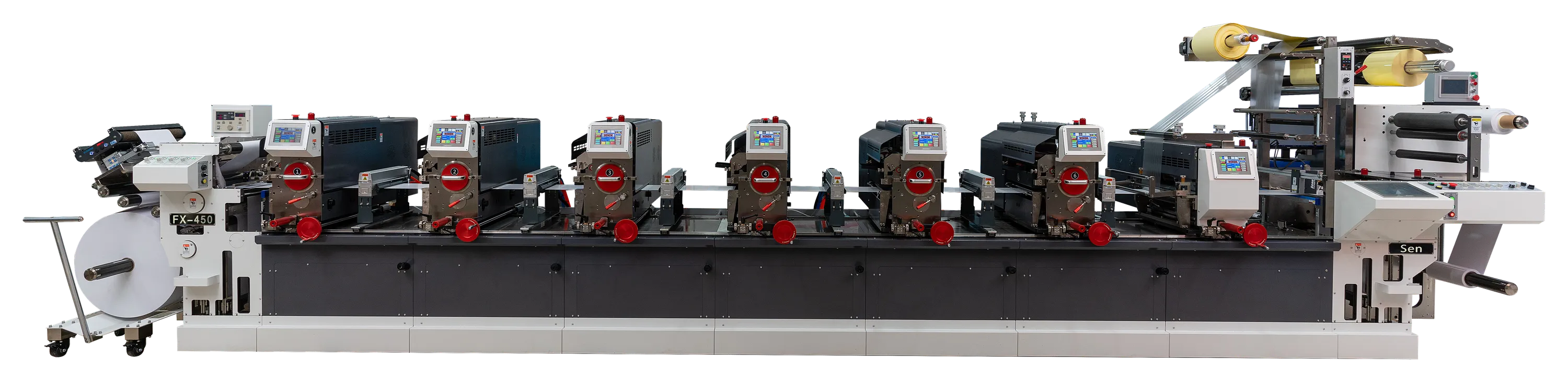

- FX-450 Intermittent flexo Six colours, magnetic rotary die-cut and LED UV on a 450 mm web. 450mm Max web width 6 Print colours 12,000/hr Output speed

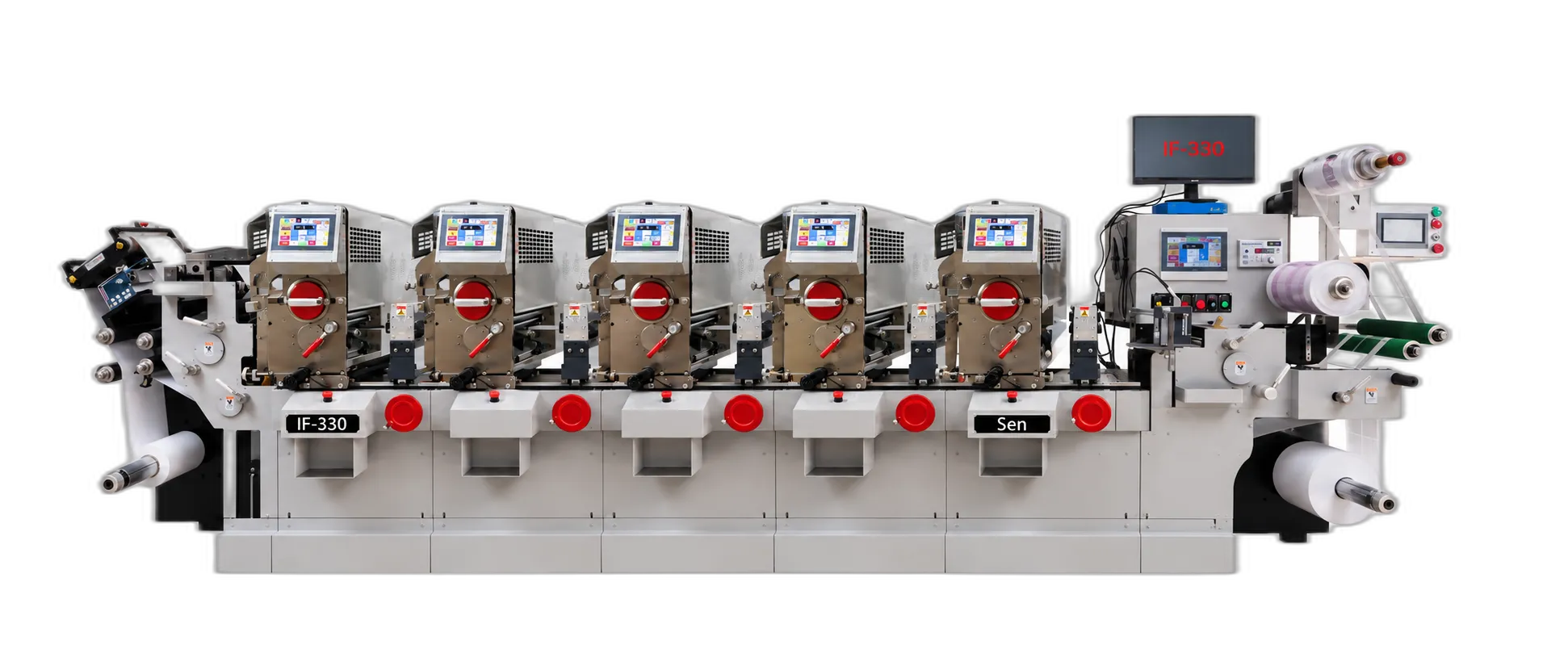

- IF-330 Intermittent UV flexo Five colours, LED UV, servo at every station. IF-330D adds a flat bed die cut. 330mm Max web width 5 Print stations 12,000/hr Labels per hour

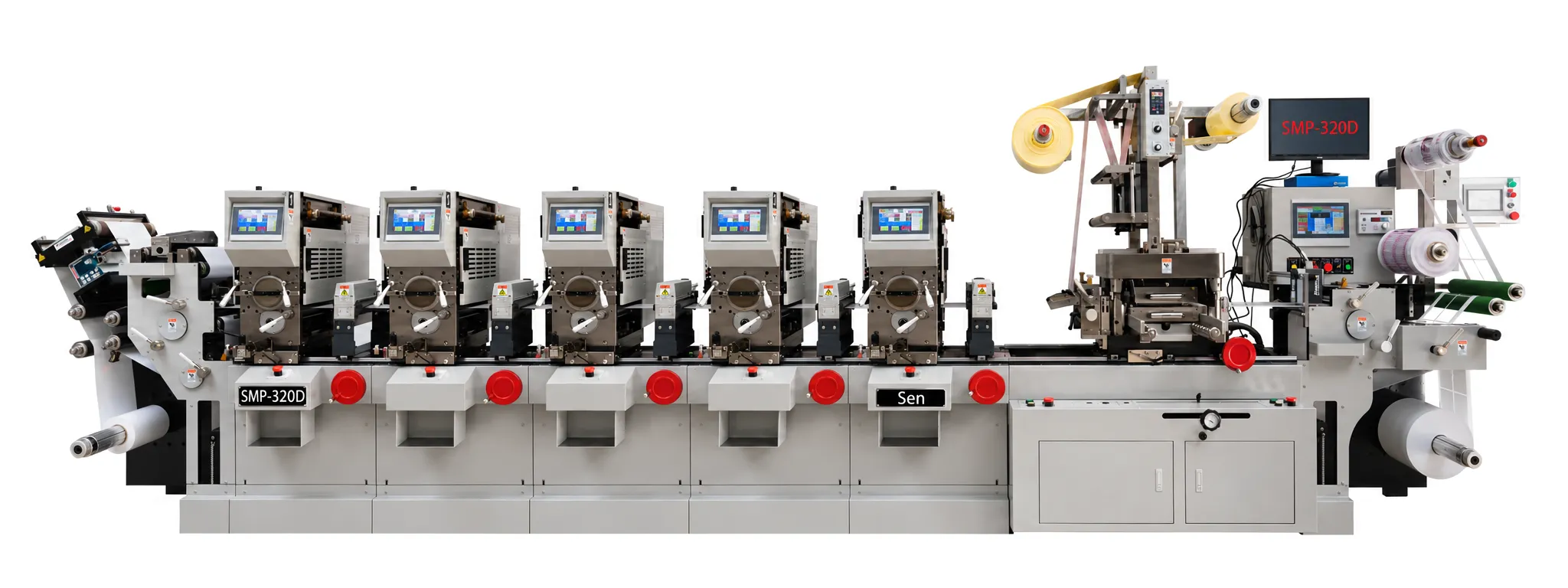

- SMP-320D Intermittent letterpress Five colour letterpress with inline flat bed die cut. Labels finished in one pass. 320mm Max web width 5 Print stations 12,000/hr Labels per hour
Side by side
| Specification | FX-450 | IF-330 / IF-330D | SMP-320D |
|---|---|---|---|
| Process | Intermittent flexo, plus full rotary at one fixed repeat | Intermittent UV flexo | Intermittent letterpress |
| Print stations | 6 colours | 5 colours | 5 colours |
| Max web width | 450 mm | 330 mm | 320 mm |
| Max printing width | 440 mm | 308 mm | 295 mm |
| Output speed | 12,000 per hour | 12,000 labels per hour | 12,000 labels per hour |
| Repeat length | 20 to 460 mm intermittent; 577.85 mm full rotary | 20 to 300 mm (IF-330D: 20 to 250 mm with die cut) | 20 to 250 mm with die cut (290 mm printing only) |
| Print cylinder | 182T, one size per machine | 132T, fixed | 132T, fixed |
| Inline die cut | 1 magnetic rotary | IF-330D: 1 flat bed | 1 flat bed |
| Curing | LED UV | LED UV, 5 x 1.7 kW | LED UV, 5 x 1.7 kW |
Specification depends on final configuration. Full figures are on each machine page and in the catalogues.
The rest of the line
Sen also supplies the machines around the press. Ask us for details on any of these.
Ask about these machines- Die cutting
- Sen SD and SDH-350 flat bed die cutters, with hot stamping, laminating or twin-head options. Sen SRD-360 combines flat bed and magnetic rotary die cutting in one machine.
- QC inspection
- Sen LRS-350 digital QC inspection with a 4K camera at up to 80 m/min, checking colour difference, scratches, QR codes and OCR.
- Varnishing
- Sen VRS-360 inline flexo UV varnish machine, up to 360 mm wide.
- Slitting and sheeting
- Sen slitters and the RLS-350 laminate-and-slit machine, plus HS-350/450 sheet cutters with 2nd-pass scanner mark control.
Talk to us
Tell us which machine you need and where it will run. Our sales team replies on WhatsApp or by email.
