Intermittent UV flexo
Sen IF-330
Five colour intermittent UV flexo label press
Flexo quality with turnaround close to digital. One print cylinder covers every repeat length, so a job change is a plate change.
Catalogue 2026: IF-330 and SMP-320D- 01
Five colours, LED UV, servo at every station.
- 02
One print cylinder covers every repeat length, so a job change is a plate change.
- 03
The IF-330D adds an inline flat bed die cut, so labels are printed and die cut in one pass.
- 04
Up to 12,000 labels per hour printing, and up to 9,000 with the die cut running.
- Max web width
- 330mm
- Print stations
- 5
- IF-330D max die cut area
- 250 x 300mm
- Labels per hour
- 12,000/hr
- 1Web guide
- 2Touch screen panel
- 3Vision camera
- 4LED UV
- 5Main touch screen panel
IF-330
Base press
Five colour intermittent UV flexo with LED UV curing at every station. The 132T print cylinder covers every repeat length, driven by servo motors at every station.
- 6Built-in flat bed die cut station

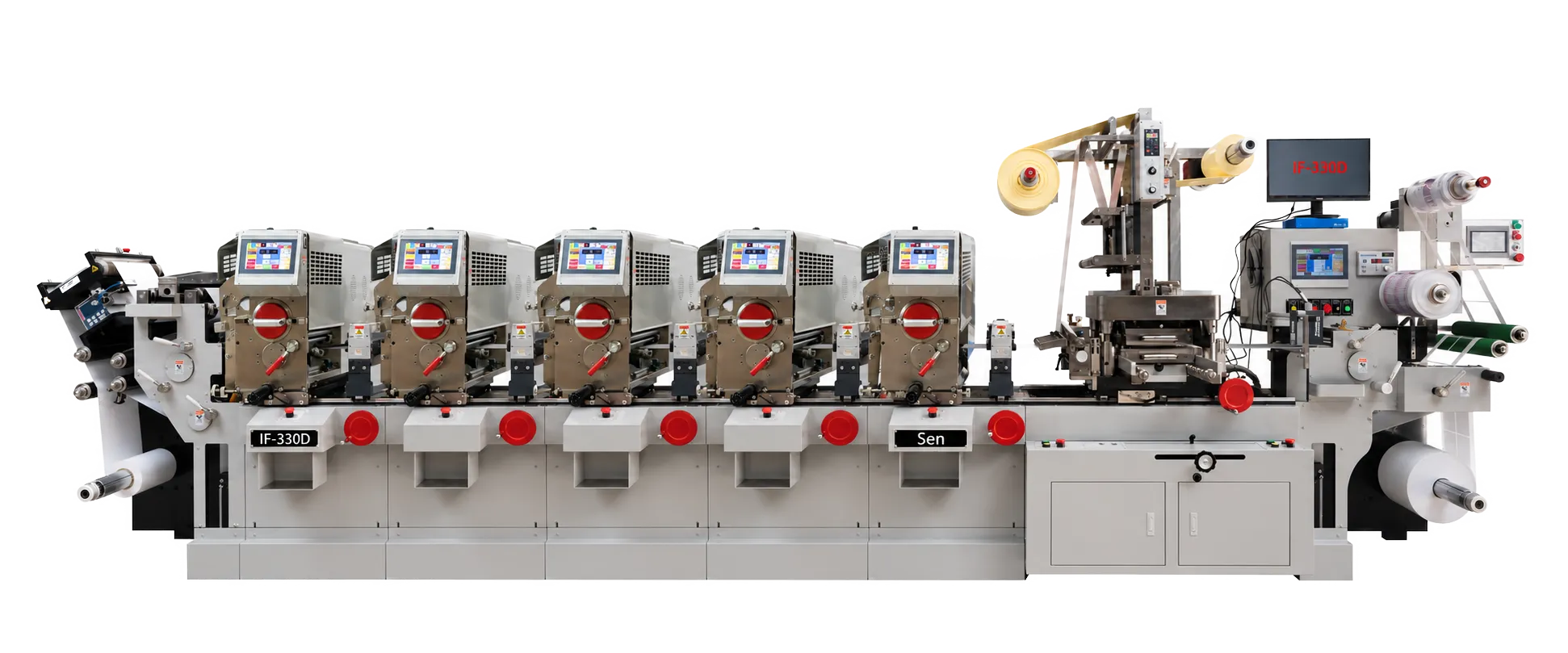

IF-330D
With flat bed die cut
Everything in the IF-330, plus an inline flat bed die cut on the same pass. The press prints and die cuts in one operation, so finished labels come off the rewind with no separate die cutting step.
- Max web width
- 330mm
- Print stations
- 5
- Labels per hour
- 12,000/hr
- Print cylinder
- 132T
- Unwind and rewind
- Ø550mm
Built to take work off digital presses
Setup is fast and waste is low: about 20 to 30 metres of web and the press is already running finished, saleable labels. Because it prints from plates, the cost per label stays flat as volume grows, colour holds steady from the first metre to the last, and a new job just needs a new plate, not a re-profile.
For the runs where digital turns slow and expensive, the IF-330 gives the same quick turnaround at a lower cost per label.
Runs on Self-adhesive stock, product labels, stickers and flexible film. Short runs and multicolour work.
Key features
- Servo throughout. Anilox, impression and printing cylinder each on its own servo motor.
- LED or conventional UV curing at every print station.
- Vision camera with TV monitor for register inspection while the press runs.
- Web guide, a touch panel at every station and a main control panel.
IF-330 in detail
-

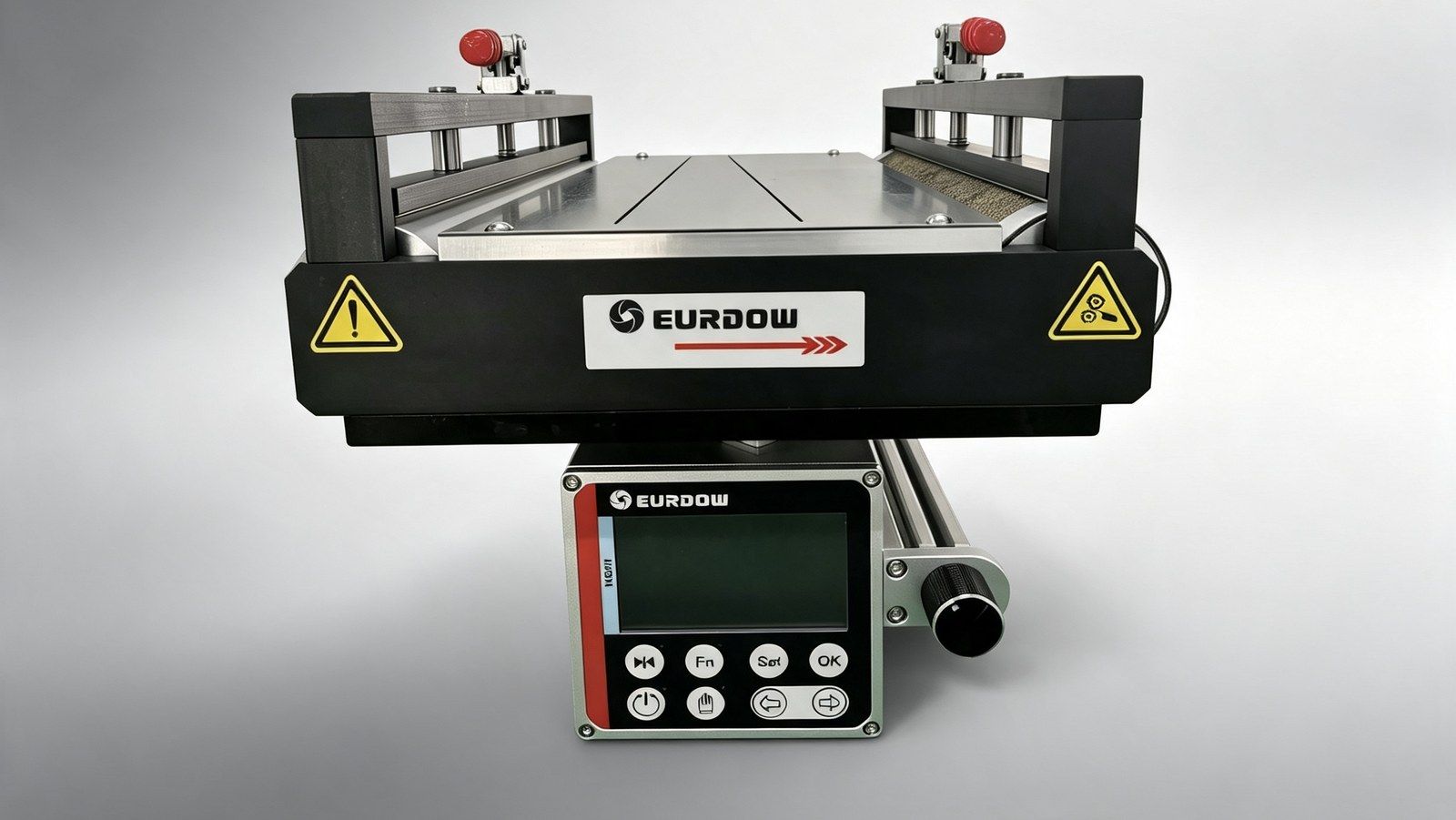

FIG.01
Web guide
Automatic edge correction keeps the web dead centre at speed.
-

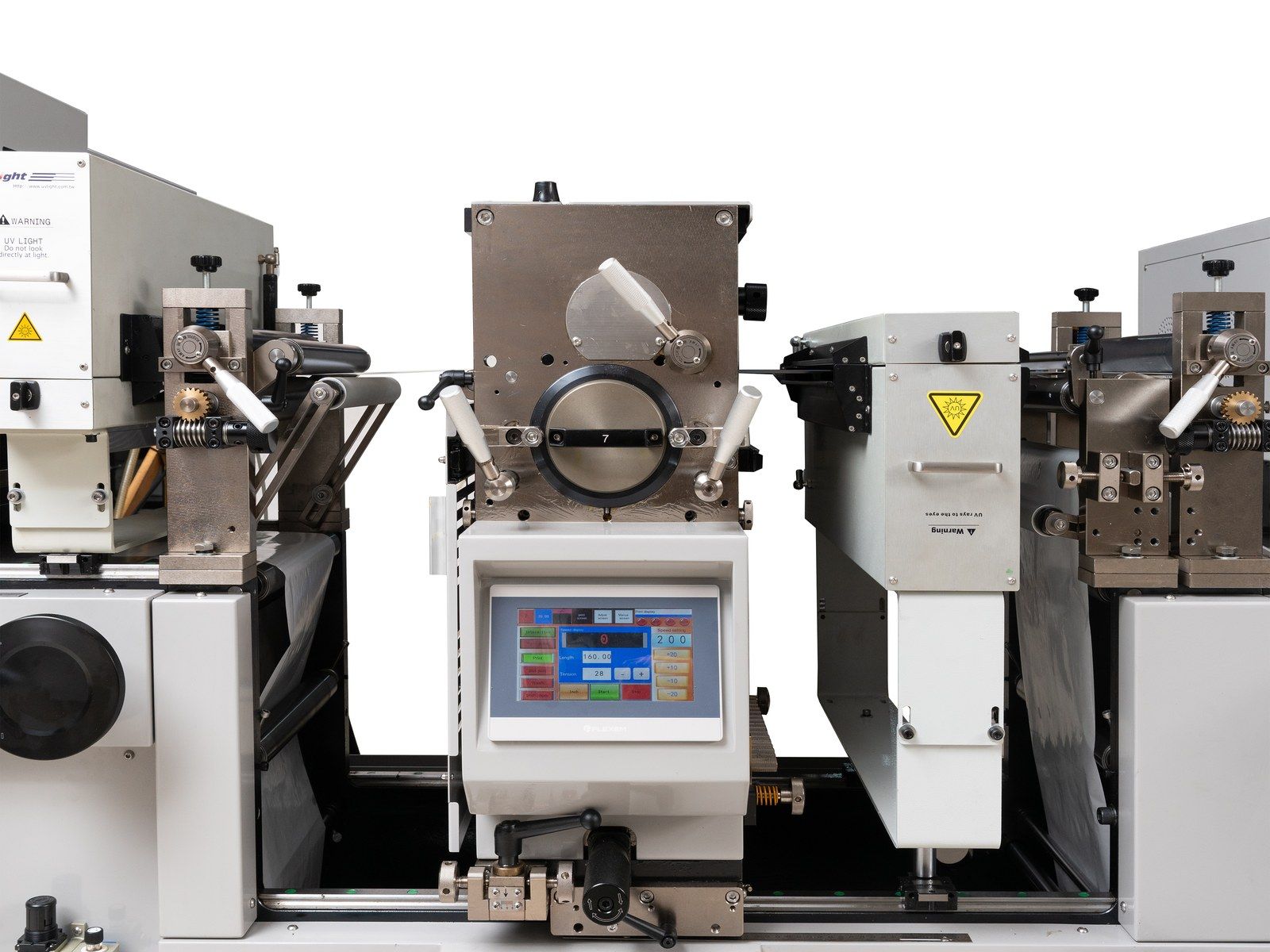

FIG.02
Backside printing station
Optional station you can add for kill-glue coating or backside printing.
-

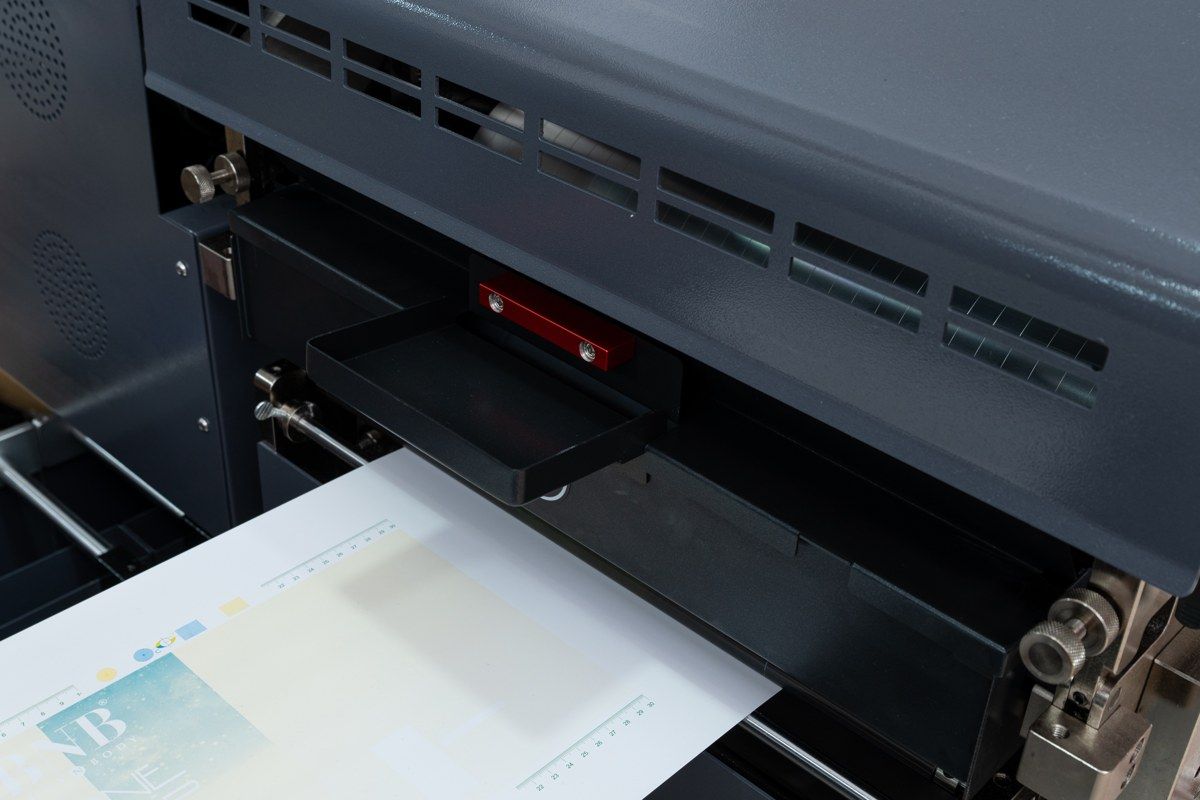

FIG.03
Ink tray
Exclusive Sen design. A double-layer structure that makes colour changes quick and clean.
-

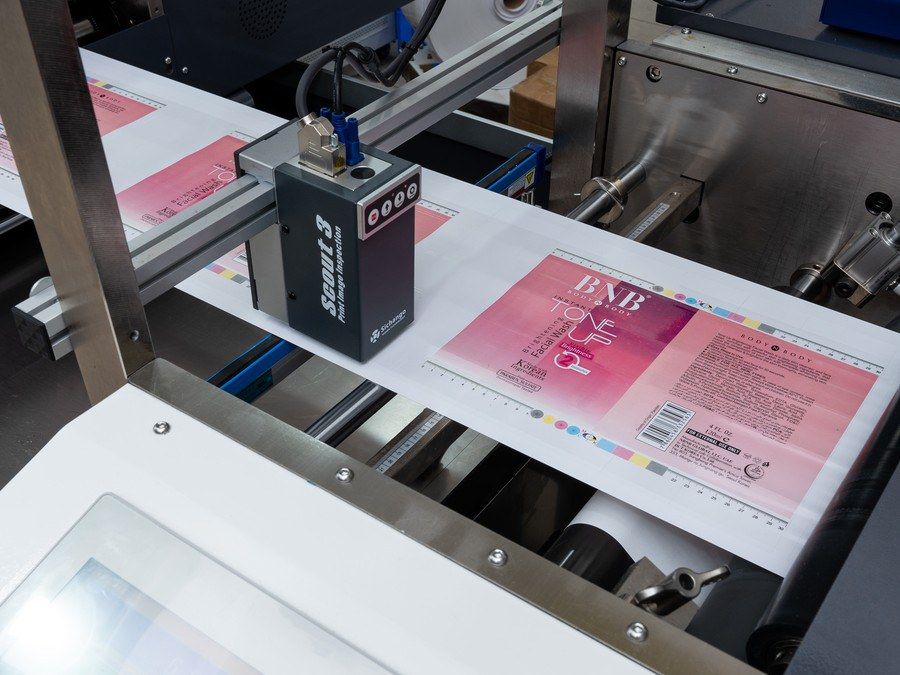

FIG.04
Vision camera
Inline vision camera and monitor for on-screen register inspection.
-

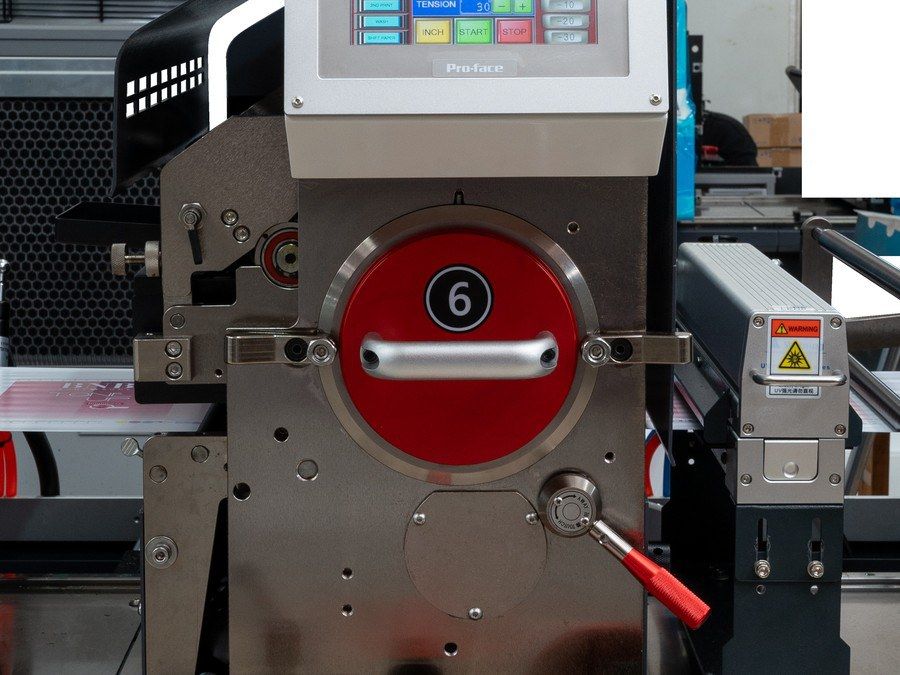

FIG.05
Printing station
Easy plate-cylinder change design.
-

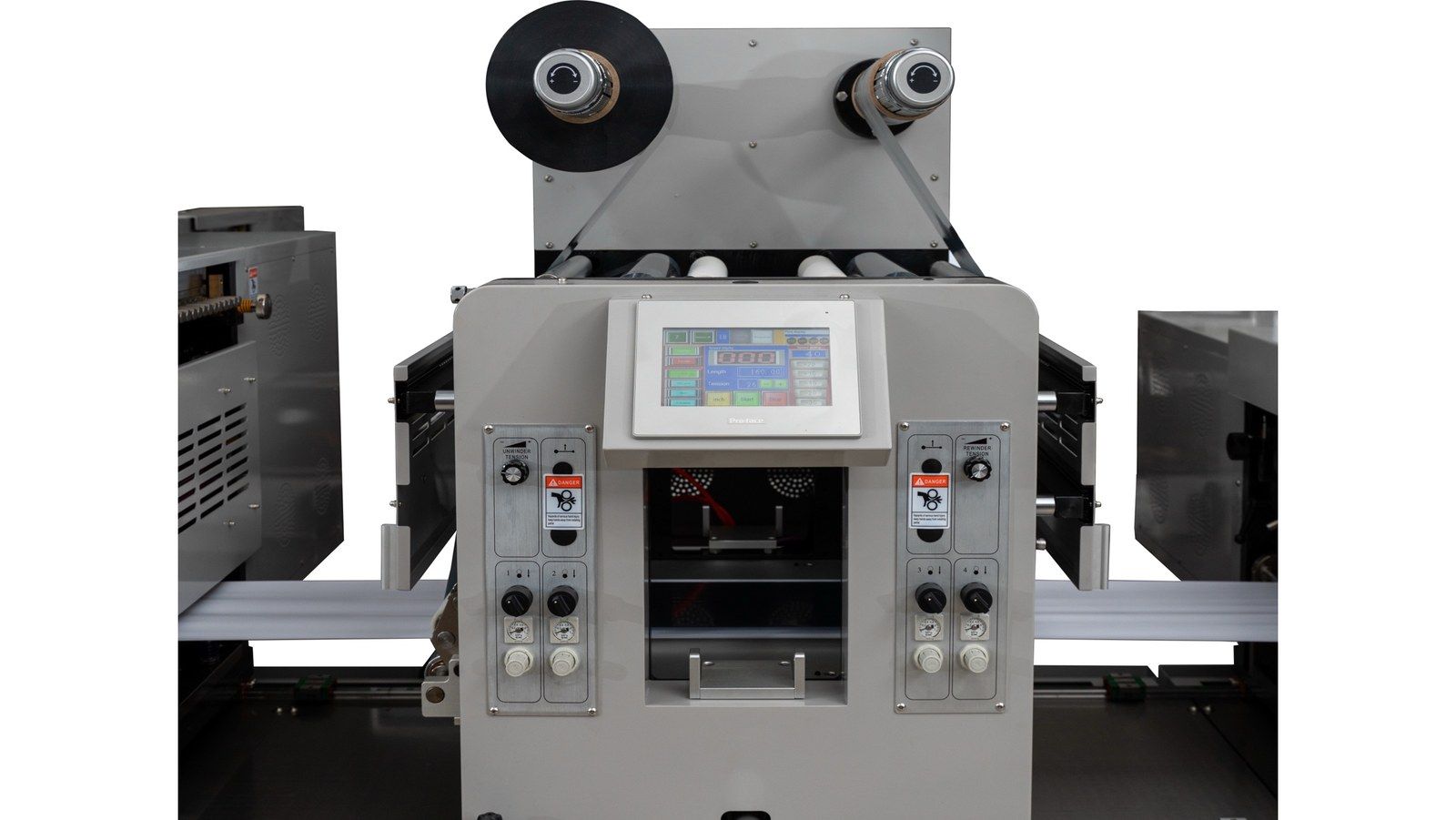

FIG.06
Servo cold stamping station
Optional servo-driven cold foil unit adds metallic foil inline with UV adhesive, no heated dies.
Configurable per order
- Web guide
- Touch screen
- Tension controller
- Pneumatic nip roller pressure
- Auto positioning
- Vision camera
- Anilox roller
- UV dryer
Specification
| Specification | IF-330 Base press | IF-330D With inline flat bed die cut |
|---|---|---|
| Printing | ||
| Process | Intermittent UV flexo | Intermittent UV flexo |
| Print stations | 5 colours | 5 colours |
| Print cylinder | 132T, fixed | 132T, fixed |
| Output speed | 12,000 labels per hour | 12,000 labels per hour |
| Repeat length | 20 to 300 mm | 20 to 250 mm (300 mm) |
| LED UV | 5 x 1.7 kW (UV Light, Taiwan) | 5 x 1.7 kW (UV Light, Taiwan) |
| Web and die cut | ||
| Max web width | 330 mm | 330 mm |
| Max printing width | 308 mm | 308 mm |
| Unwind / rewind diameter | Ø550 mm | Ø550 mm |
| Inline flat bed die cut | Not fitted | 1 unit |
| Max die cut area | Not fitted | 250 x 300 mm |
| Die-cut speed | Not fitted | 150 per minute |
| Installation | ||
| Dimensions L x W x H | 5470 x 1300 x 1500 mm | 6570 x 1300 x 1500 mm |
| Net weight | 3500 kg | 4500 kg |
| Power supply | 3 Phase 200V, approx 21 kW | 3 Phase 200V, approx 25 kW |
- With the inline flat bed die cut running together with printing, maximum output is 9,000 labels per hour. Printing alone runs at the full rated speed.
- Repeat length "20 to 250 mm (300 mm)": 250 mm with the die cut in use, 300 mm when printing only.
- Specification depends on final configuration.
Questions buyers ask about the IF-330
What is the difference between the IF-330 and the IF-330D?
The IF-330D adds one inline flat bed die cut (max die cut area 250 x 300 mm, 150 cuts per minute), so labels are printed and die cut in one pass. With the die cut in use the repeat is 20 to 250 mm and output is up to 9,000 labels per hour; printing only, it runs 300 mm repeats at 12,000 per hour. The IF-330D is 6,570 mm long against 5,470 mm, and weighs 4,500 kg against 3,500 kg.
Why choose intermittent flexo instead of a digital press?
Setup takes about 20 to 30 metres of web, the cost per label stays flat as volume grows, and colour holds steady from the first metre to the last. A new job needs a new plate, not a re-profile, so short runs turn around quickly at a lower cost per label.
Which UV curing is fitted?
LED UV at every print station, 5 x 1.7 kW (UV Light, Taiwan). Conventional UV is also available. Tell us which you prefer when you ask for a quote.
What power supply does it need?
3 phase 200V, approximately 21 kW for the IF-330 and 25 kW for the IF-330D.
Do you install the machine and train our operators?
Yes. Our technicians install and commission every machine, and we train your operators on site or by video call. Remote support is available in English, Mandarin and Bahasa.
