Intermittent flexo
Sen FX-450
Six colour intermittent flexo label press with magnetic rotary die-cut
A precision-built intermittent flexo label press for high-volume, register-perfect production: six colours, inline magnetic rotary die-cutting, LED UV curing and servo control.
FX-450 catalogue- 01
Six colours, inline magnetic rotary die-cutting, LED UV curing and servo control.
- 02
The web is printed, laminated, die-cut on the magnetic rotary station and rewound in the same pass.
- 03
Magnetic rotary die-cut, one unit, inline.
- 04
Up to 12,000 prints per hour. The press is 9,050 mm long.
- Max web width
- 450mm
- Print colours
- 6
- Magnetic rotary die-cut
- 1
- Print cylinder
- 182T
- Output speed
- 12,000/hr
- 1Web guide
- 2Station touch-screen panel
- 3LED UV curing
- 4Magnetic rotary die-cut
- 5Unwind / rewind laminate
- 62nd-pass scanner
- 7Rigid steel body
- 8Servo-motor dancing roller
- Max web width
- 450mm
- Print colours
- 6
- Output speed
- 12,000/hr
- Print cylinder
- 182T
- Magnetic rotary die-cut
- 1
Print, laminate and die-cut in one pass
The web is printed, laminated, die-cut on the magnetic rotary station and rewound in the same pass.
In intermittent mode the repeat length is variable, from 20 to 460 mm on the 182T cylinder. The press can also run full rotary at one fixed repeat of 577.85 mm, the circumference of the 182T cylinder, at up to 80 m/min. The cylinder size is fixed for each machine and specified when you order.
Runs on Self-adhesive labels, product labels, cosmetic, food and beverage, pharmaceutical, multi-colour stickers, laminated labels and premium brand work.
Key features
- Six-colour intermittent flexo with LED UV curing.
- Magnetic rotary die-cut, one unit, inline.
- Servo dancing roller for web tension.
- 2nd-pass scanner mark and vision camera for register inspection.
- Touch panel at every station, eight in total: seven station panels and one main panel.
Speed by repeat length
Maximum output with the 182T cylinder, from the FX-450 speed chart.
Up to a 300 mm repeat the press runs at its maximum 200 rpm. Longer repeats hold 60 m/min with fewer cycles per minute. One print per cycle.
| Repeat (mm) | Prints per hour |
|---|---|
| 100 | 12,000 |
| 200 | 12,000 |
| 300 | 12,000 |
| 350 | 10,260 |
| 400 | 9,000 |
| 450 | 7,980 |
| 460 | 7,800 |
| 577.85 (full rotary) | 8,280 |
FX-450 in detail
-

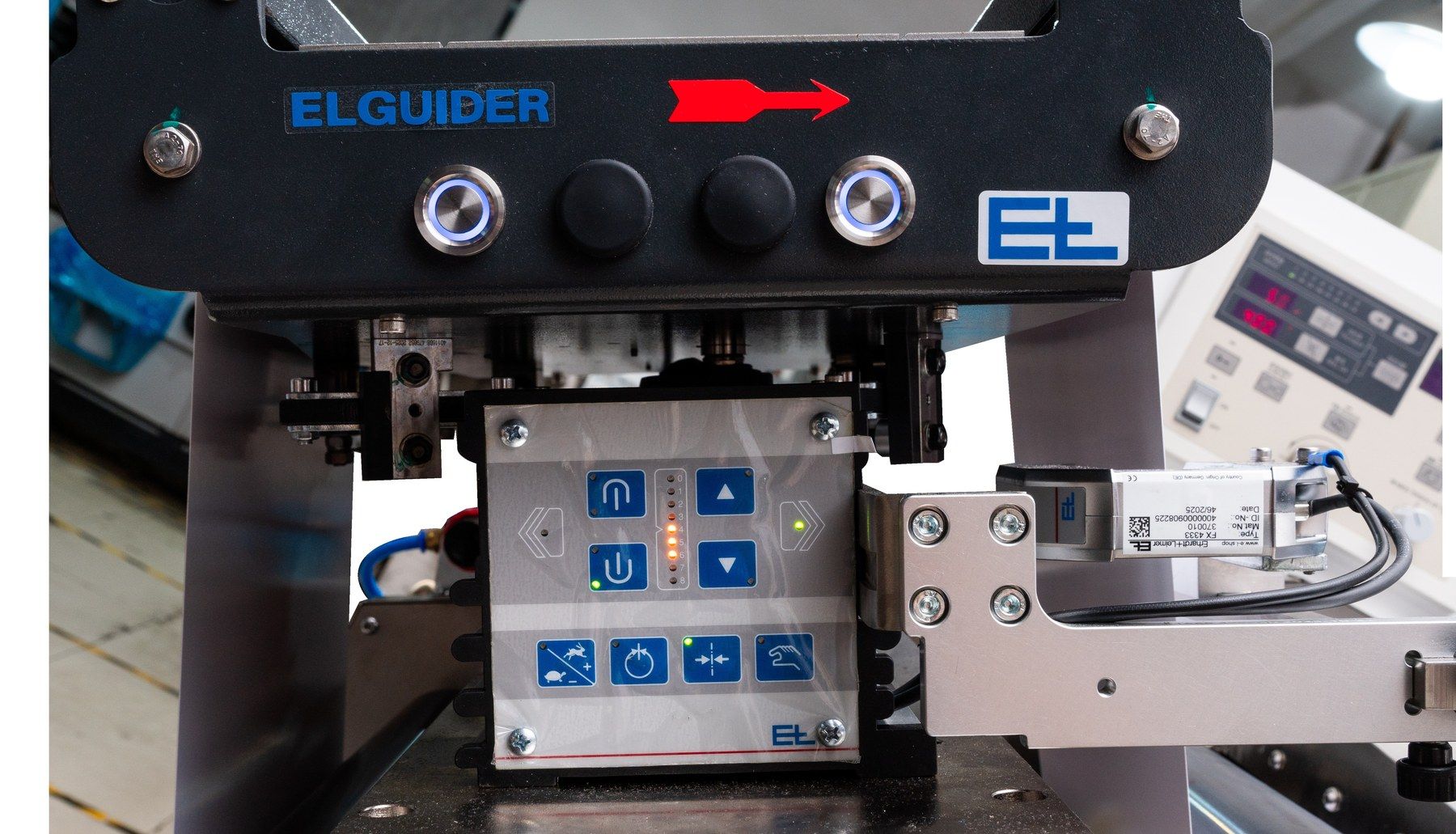

FIG.01
Web guide
Automatic edge correction keeps the web dead centre at speed.
-

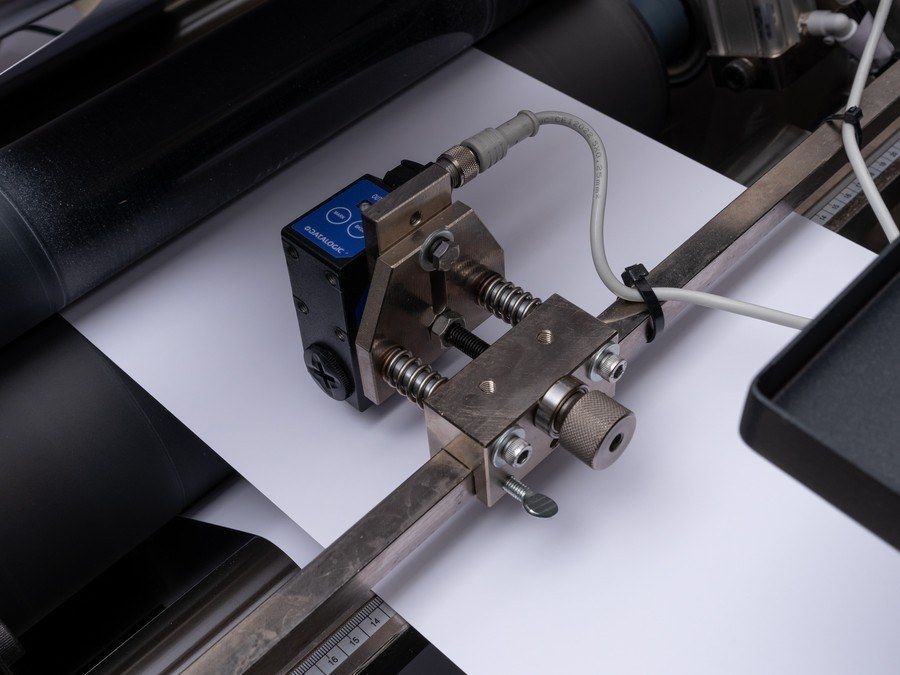

FIG.02
2nd-pass scanner
Reads the printed mark for precise re-register on the second pass.
-

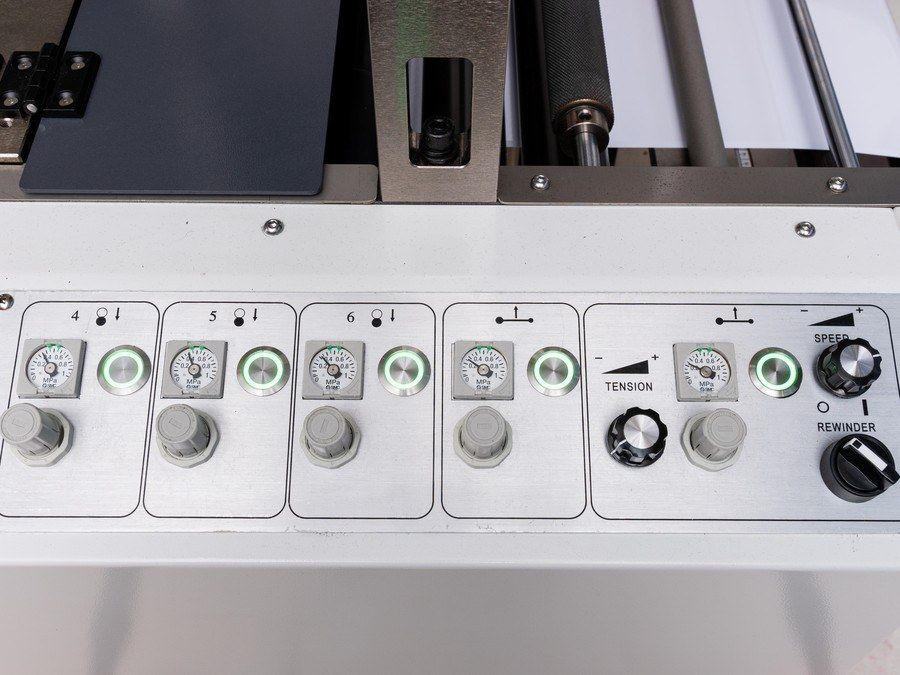

FIG.03
Pneumatic nip roller control
Pneumatic control of the nip roller pressure.
-

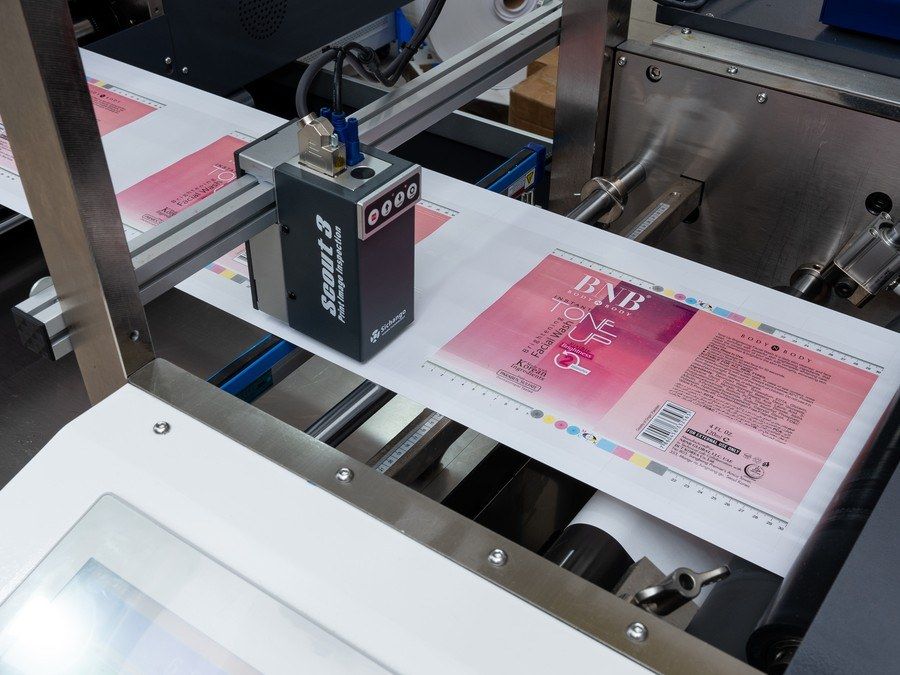

FIG.04
Vision camera
Inline vision camera and monitor for on-screen register inspection.
-

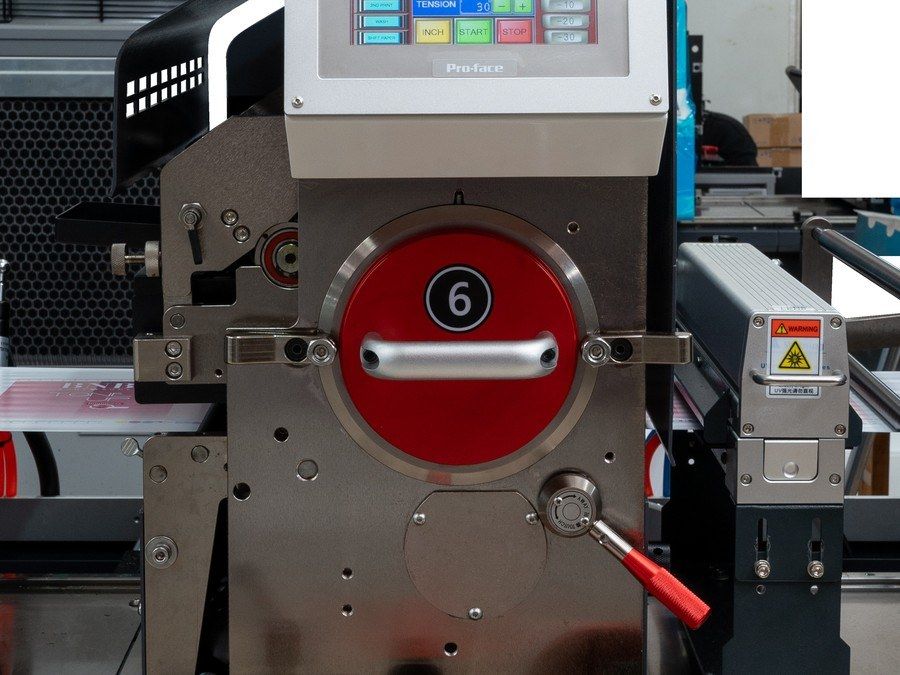

FIG.05
Printing station
Easy plate-cylinder change design.
-

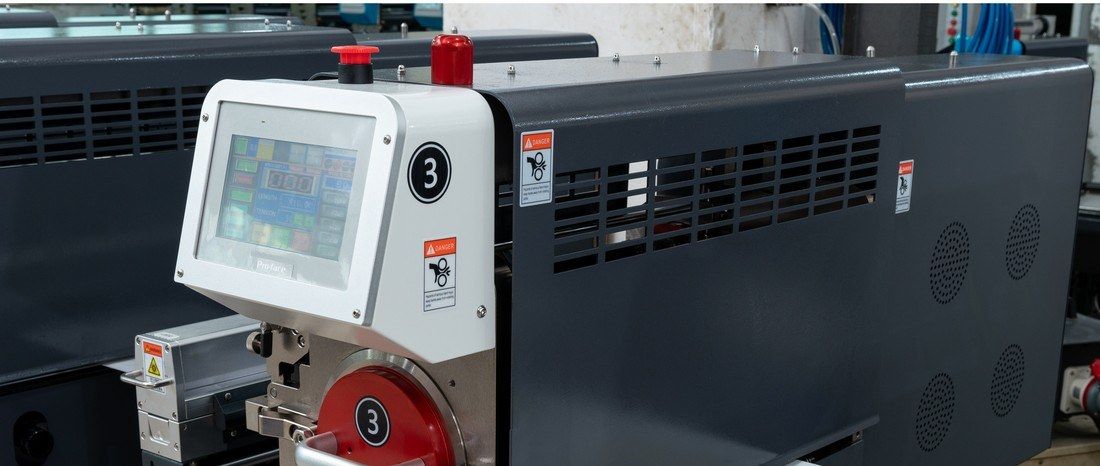

FIG.06
Station touch screen
Every print station has its own touch screen, plus a main panel.
| Specification | FX-450 6 colour + 1 magnetic rotary die-cut |
|---|---|
| Printing | |
| Process | Intermittent flexo, plus full rotary at a fixed repeat |
| Print stations | 6 colours |
| Print cylinder | 182T (pitch 3.175 mm), one size per machine |
| Print area | (W) 50 to 440 x (L) 20 to 460 mm |
| Full rotary repeat | 577.85 mm (182T) |
| Output speed | 12,000 per hour, 60 m/min (intermittent) |
| UV dryer | LED UV |
| Converting and control | |
| Rotary die-cut | 1 x magnetic |
| Web guide | 1 unit |
| Mark sensor | 2nd-pass scanner + vision camera |
| Touch panels | 8 units (7 station + 1 main) |
| Max web width | 450 mm |
| Installation | |
| Power, main machine | 3 phase 200V, 40 kVA |
| Power, LED UV dryer | 3 phase 220V, 21 kVA |
| Dimensions L x W x H | 9,050 x 1,500 x 1,900 mm |
| Net weight | 6,200 kg |
- Specification depends on final configuration.
- Speeds are maximum machine speeds. Actual production speed depends on substrate, ink, plate and die-cut conditions.
Questions buyers ask about the FX-450
Can the FX-450 print full rotary as well as intermittent?
Yes. In intermittent mode the repeat is variable from 20 to 460 mm. In full rotary mode the repeat is fixed at the cylinder circumference, 577.85 mm for the 182T cylinder. Each machine has one cylinder size, specified when you order.
How fast does it run?
Up to 12,000 prints per hour at 200 rpm for repeats up to 300 mm. Longer repeats run at the 60 m/min line-speed limit, for example about 9,000 per hour at 400 mm and 7,800 per hour at 460 mm. Full rotary runs at up to 80 m/min. Actual speed depends on substrate, ink, plate and die-cut conditions.
What power supply and floor space does it need?
The main machine needs 3 phase 200V, 40 kVA and the LED UV dryer 3 phase 220V, 21 kVA. The press measures 9,050 x 1,500 x 1,900 mm (L x W x H) and weighs 6,200 kg net.
Do you install the machine and train our operators?
Yes. Our technicians install and commission every machine, and we train your operators on site or by video call. Remote support is available in English, Mandarin and Bahasa.
